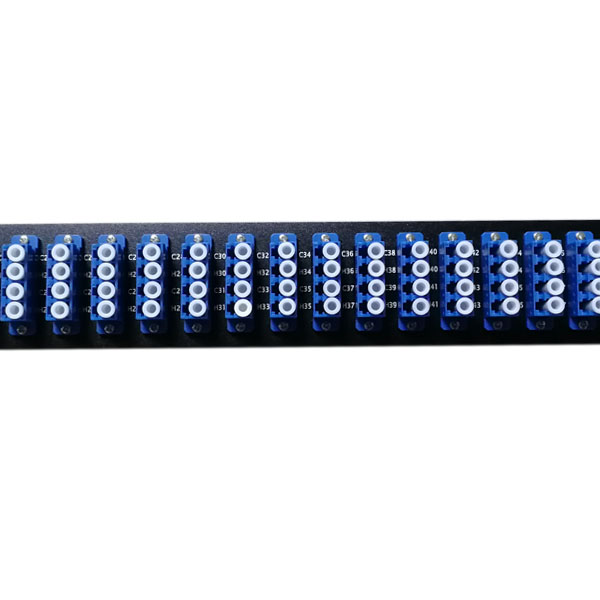

96CH 50GHz Athermal AWG Module

Features
Athermal AWG Gaussian Type
C-band 50GHz DWDM 96 Channels C17 C17.5 to C64 C64.5, or C14 C14.5 to C61 C61.5
Low Insertion Loss < 4.5dB, typical from 3dB to 4dB
Packaged in 1U Rackmount or metal box
    HyOptic 96CH 50GHz DWDM MUX modules use Gaussian Athermal AWG on 50GHz Grid based on silica-on-silicon planar technology, multiplex 96 channels ITU Grid 50GHz DWDM wavelengths into single fiber for transmission to remote.
    Two models are available
    96CH=C14 to C61, plus H14(C14.5)to H61(C61.5)
    96CH=C17 to C64, plus H17(C17.5)to H64(C64.5)

    Typical applications
    Dual Fiber and Single Fiber
     Parameter                32CH 40CH 96CH
    MUX    DEMUX MUX     DEMUX MUX    DEMUX
    Operating Wavelength (nm) ITU 100GHz Grid   C14-C61 (96CH is 50GHz)
    Channel Spacing (GHz) C band 100GHz  (96CH is 50GHz)
    Channel Passband @-0.5dB (nm) ＞0.3
    Insertion Loss (dB) ≤4.5 ≤4.5 ≤7.5

    Isolation (dB)    		 Adjacent ＞25
    Non-adjacent ＞29
    Polarization Dependent Loss (dB)                    ＜0.5
    Polarization Mode Dispertion (ps) ＜0.5
    Directivity (dB) ＞40
    Return Loss (dB) ＞40
    Maximum Power Handling （mW） 300
    Operating Temperature (℃） -5~+65
    Storage Temperature (℃） -40~+85
