CWDM4 MUX DEMUX Receptacle

4CH 1271nm 1291nm 1311nm 1331nm
MUX with LC Stub and Receptacle
Demux with LC Receptacle
Ideal for Data Center and 100G QSFP28 Modules
    HyOptic CWDM4 MUX DEMUX Assembly with LC receptacle and fiber stub is based on Silica PLC AWG chipset, which can be instead of TOSA ROSA based on TTF technology.
    We can offer 4 channels and 8 channels for 40G 100G 200G 400G optical transceivers applications.

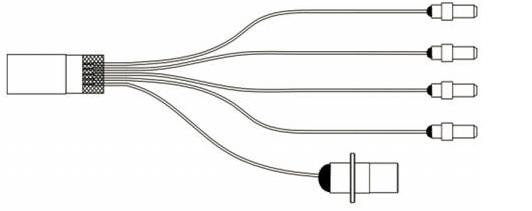

    MUX with LC fiber stub
    MUX with fiber stub
    Demux with LC receptacle
    DEMUX receptacle
    4CH 1271nm 1291nm 1311nm 1331nm
    8CH available
    Insertion Loss of MUX <3.5 dB
    Insertion Loss of DEMUX <2.5 dB
    Return Loss > 40 dB
    Isolation(Adjacent)> 26 dB
