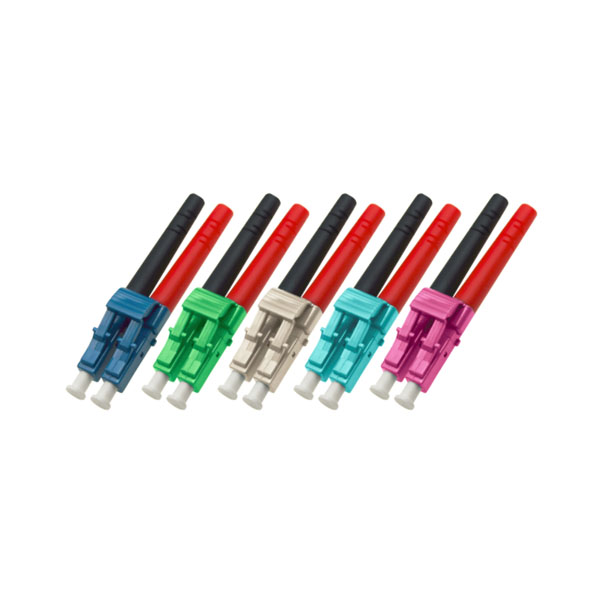

LC Duplex Fiber Cable

Different colors for configuration
SM UPC blue color
SM APC green color
MM OM2 beige color
MM OM3 aqua color
MM OM4 violet color

Different materials optional: PVC LSZH (OFNR OFNP)
Cable diameter optional: 900um, 1.6mm 2.0mm 3.0mm
PC UPC APC optical surface optional
pc upc apc
    HyOptic LC Duplex fiber optical cable built-in precision ceramic ferrule with very low insertion loss, have high quality of mechanical and optical performance. This optic patch cords have different colors for single mode, multi-mode OM2 OM3 OM4 and OM5 configurations.

    Features
    Increase cabling density up to 50%
    ROHS Compliance
    Compliance with UL 94-V0 compliant
    Compliance with IEC61300-3-35
    Compliance with Telcordia GR-326-CORE Compliant
    Parameters Specifications
    Fiber Mode SM MM
    Optical Surface PC or UPC APC PC
    Insertion Loss ＜0.2dB ＜0.2dB ＜0.2dB
    Alternationg loss ＜0.2dB
    Repeatability ＜0.2dB
    Durability ＞1000 times
    Operating temperature -40~85°C
    Storage temperature -40~85°C
    File Name : Format: Size: Download:
    Contact us for details!

    *

    *

    *

    *
