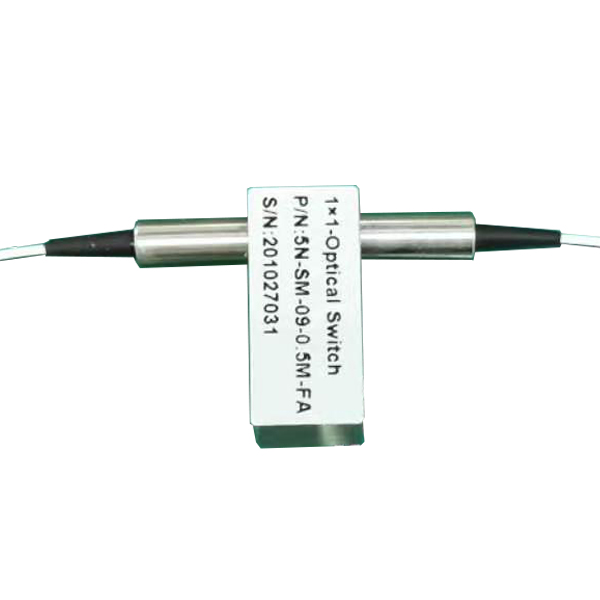

1X1 Mechanical Optical Switch

Operating Voltage: 3V or 5V
Switch Type: Latching or Non-latching
Telcordia GR-1221 and GR-1073
Compact Case
Fast Switching Time

Optical Patch Control
1X1 Mechanical Optical Switch
    HyOptic 1X1 Mechanical Optical Switch controls optical path by directing or blocking an incoming optical signal into the output fiber. This is achieved using a patent pending opto-mechanical configuration and activated via an electrical control signal.
    A latching version preserves the selected optical path after the drive signal has been removed, while the non-latching versions default to either the open or closed state when power is removed. The switch has integrated electrical position sensors. The new material based advanced design significantly reduces moving part position sensitivity, offering unprecedented high stability as well as unmatched low cost.
    Mechanical Optical Switch
    File Name : Format: Size: Download:
    Contact us for details!

    *

    *

    *

    *
