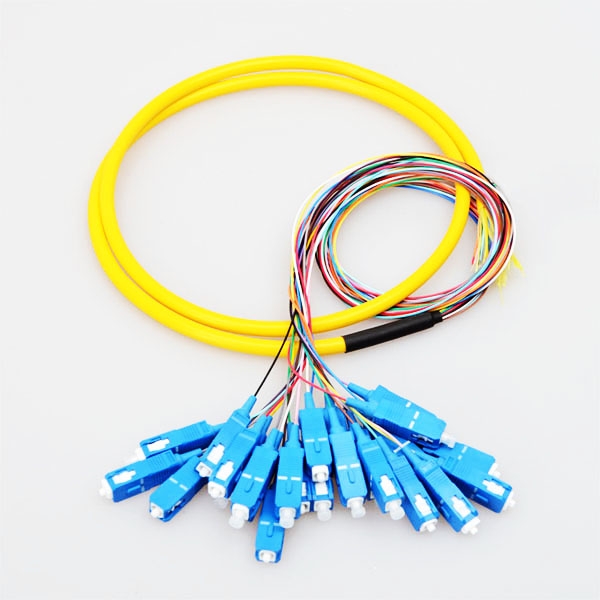

24 Fiber Cores Pigtail Cable

24 colors 0.9mm breakout cable for configuration
Different materials optional: PVC LSZH (OFNR OFNP)
Bunch or Ribbon cable
Pre-terminated connector SC LC FC ST optional
SM, OM2 OM3 OM4 OM5 available
    HyOptic 24 count fiber pigtails with 24 colors breakout cables and pre-terminated connectors, which built-in precision ceramic ferrule with very low insertion loss, have high quality of mechanical and optical performance.

    Features
    ROHS Compliance
    Compliance with UL 94-V0 compliant
    Compliance with IEC61300-3-35
    Compliance with Telcordia GR-326-CORE Compliant
    Parameters Specifications
    Fiber Mode SM MM
    Optical Surface PC or UPC APC PC
    Insertion Loss ＜0.2dB ＜0.2dB ＜0.2dB
    Alternationg loss ＜0.2dB
    Repeatability ＜0.2dB
    Durability ＞1000 times
    Operating temperature -40~85°C
    Storage temperature -40~85°C
    File Name : Format: Size: Download:
    Contact us for details!

    *

    *

    *

    *
