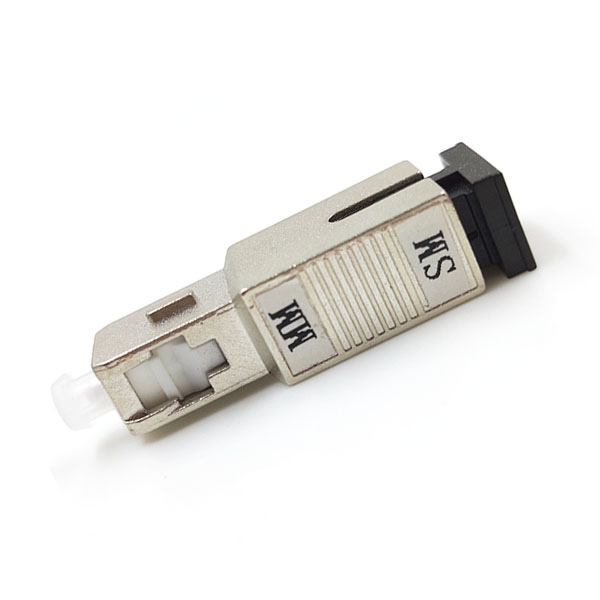

Using a unique photonic crystal fiber technology, this device enables single-mode and multi-mode connections while ensuring low loss and stability. Their structure is the same as the usual adapter damper (the man on the SM side and the woman on the ladies‘ side).

 In order to establish a hybrid SM-MM transmission, the MM fiber must be placed in the middle and used in a single mode (if there is no SM-MM-SM structure, only the SM patch connected to the MM cable from the light source is used).

Parameters                    Specifications                                    Comply

Insertion Loss               Optical path: MM → SM       < 2.5 dB @1310nm/1550nm

Insertion Loss               Optical path: SM → MM     <0.3 dB @1310nm/1550nm

PDL                               Optical path: MM → SM         <1 dB @1310nm/1550nm

PDL                                Optical path: SM → MM          <0.2 dB @1310nm/1550nm

Return loss                                     ≥40 dB

Connector type                     SC male APC to SC feale APC

Fiber type                                MM 50um/125, SM 9/125um

Oprating temperature                       -40℃ to +85℃

Storage temperature                        -40℃ to +85℃
